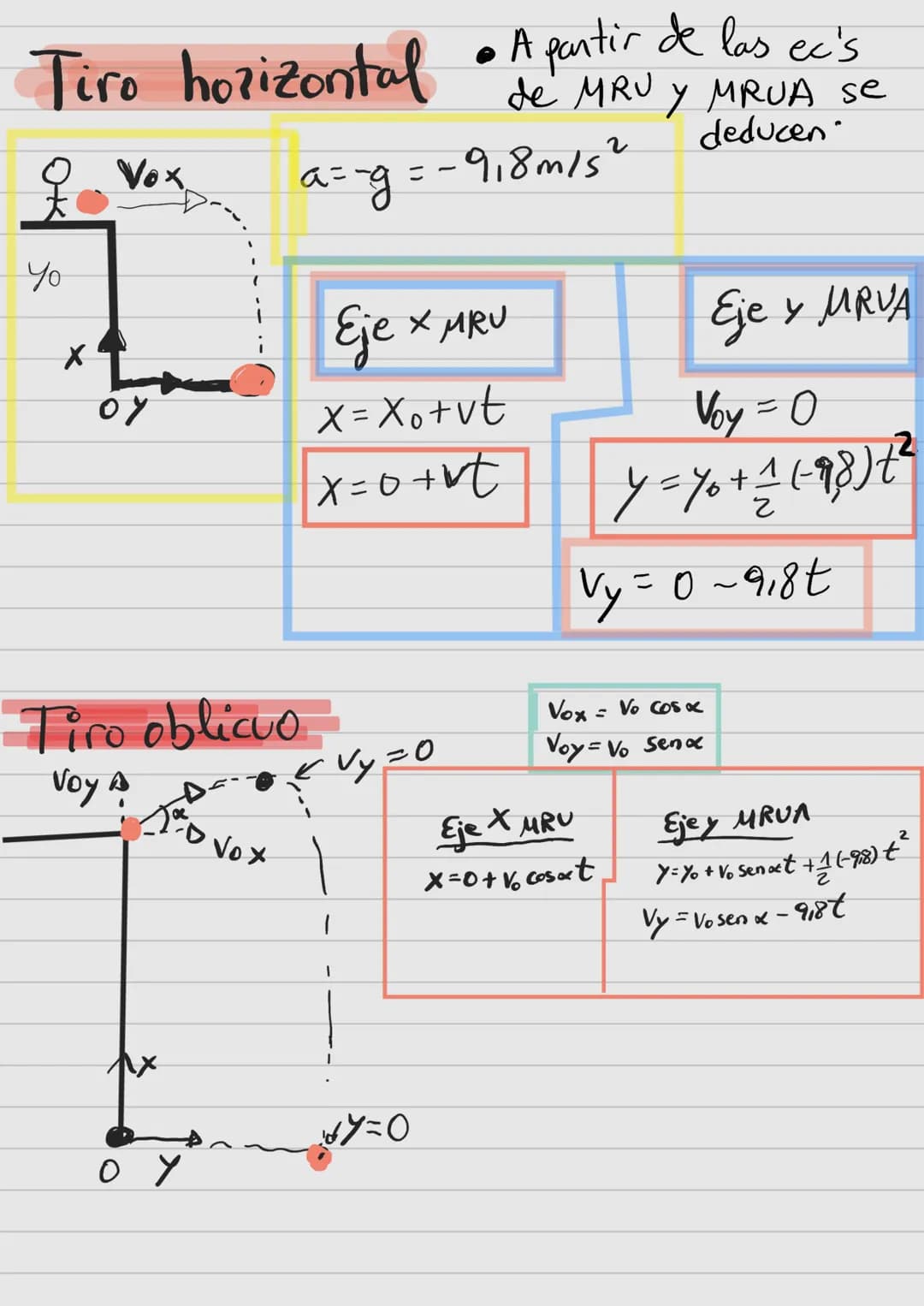

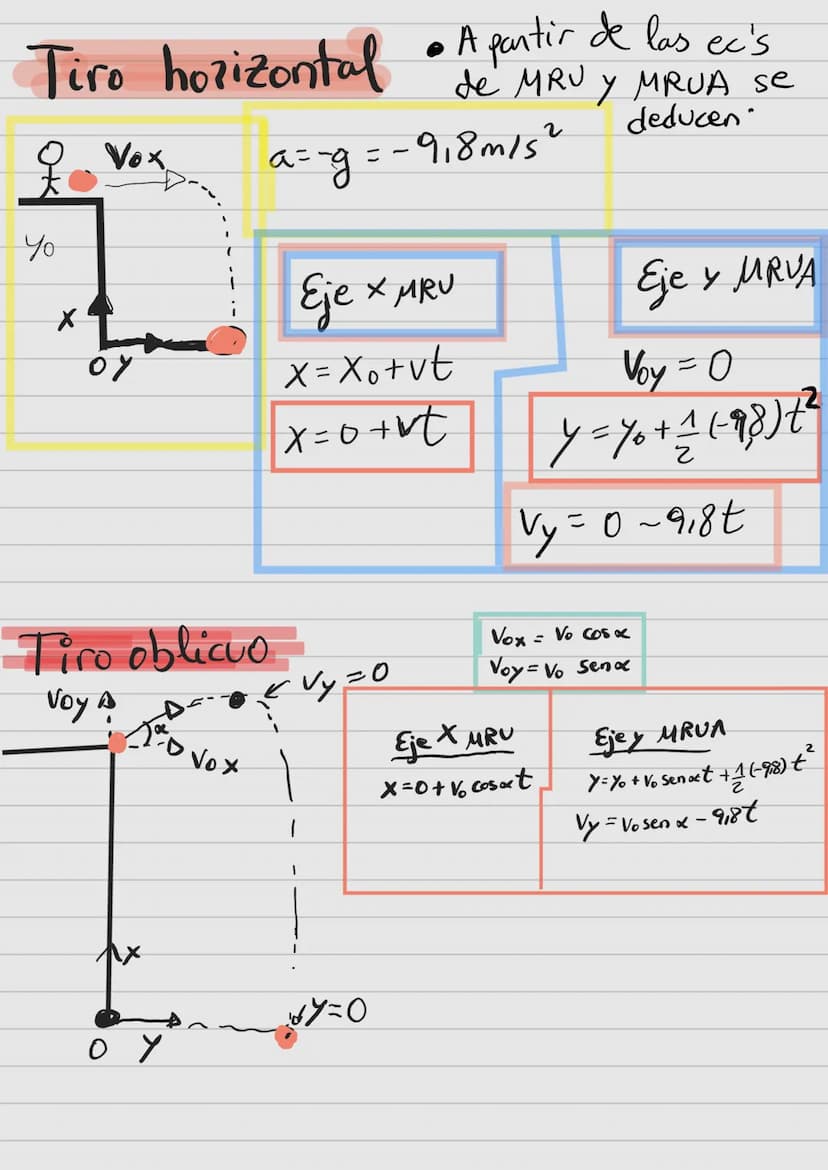

Projectile Motion

This section explores horizontal and oblique projectile motion, combining principles of MRU and MRUA.

Definition: Horizontal projectile motion combines horizontal MRU with vertical MRUA.

Highlight: In oblique projectile motion, initial velocity components are:

• Vox = Vo cos α
• Voy = Vo sin α

Example: Motion equations for oblique projection:

• Horizontal: x = vox·t
• Vertical: y = yo + voy·t + 1/2$-9.8$t²

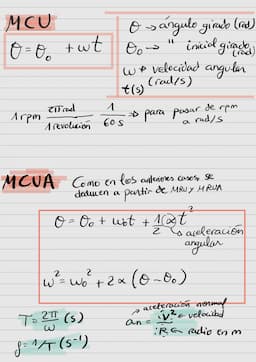

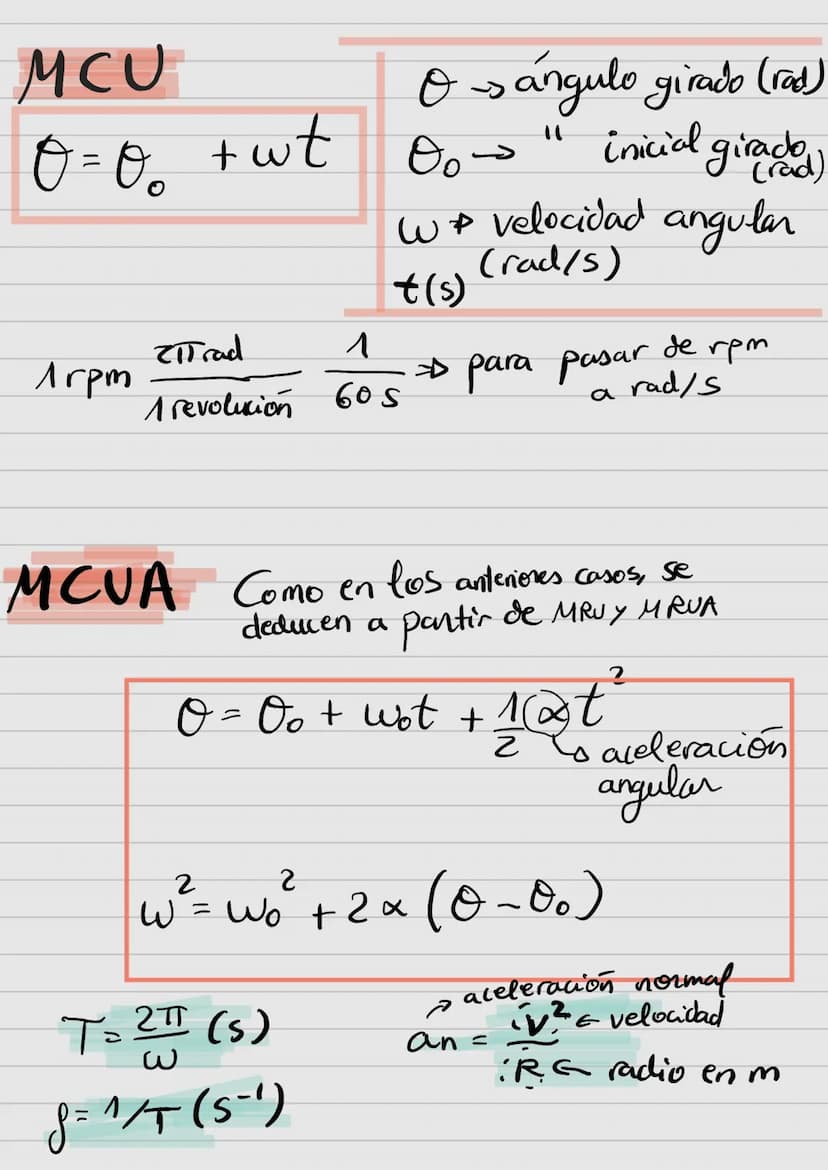

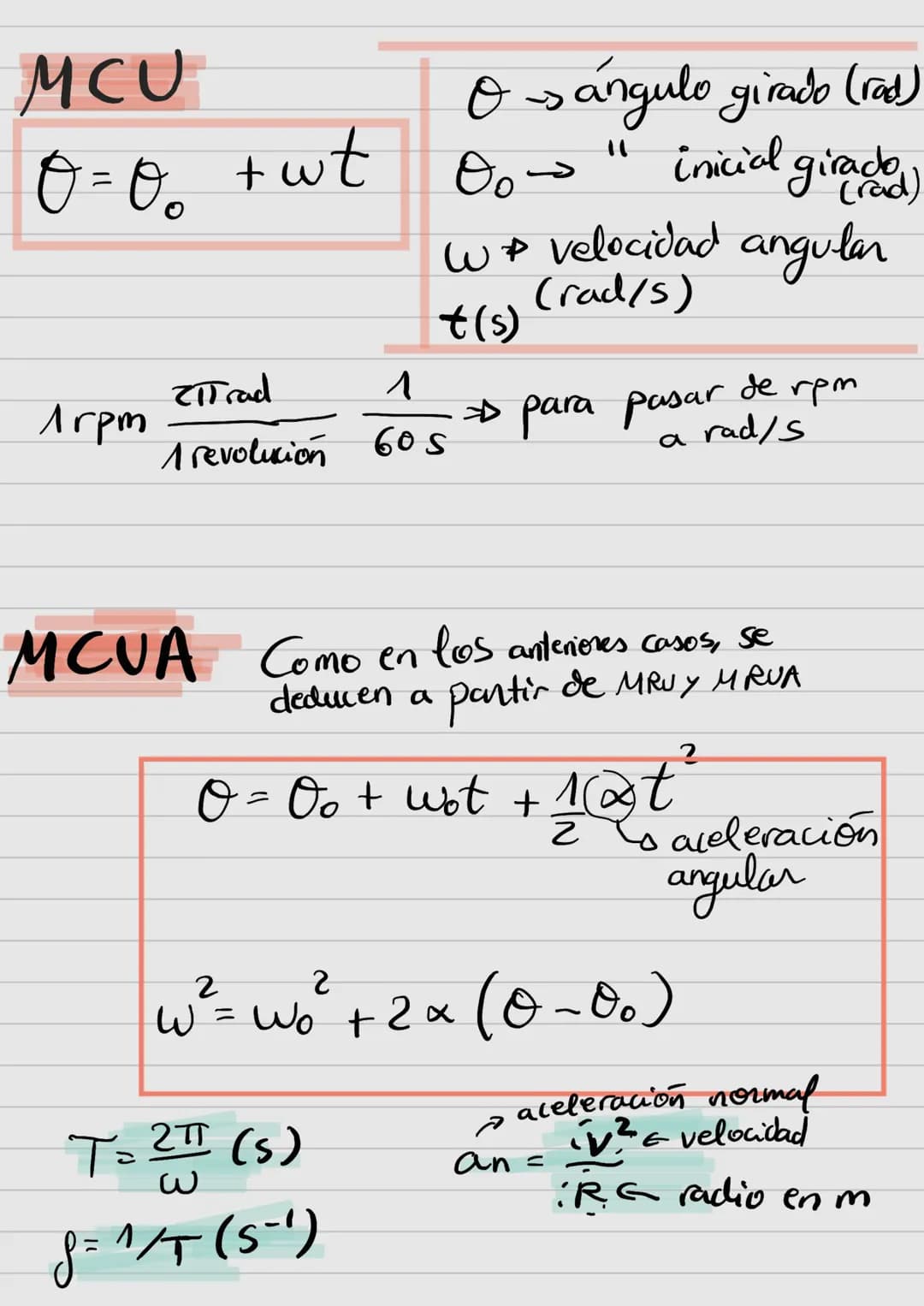

Uniform Circular Motion (MCU)

Detailed explanation of circular motion concepts and equations.

Definition: Angular position is given by θ=θo+ωt, where ω is angular velocity.

Vocabulary:

• T: Period (time for one revolution)
• f: Frequency (revolutions per second)
• ω: Angular velocity in rad/s

Highlight: Period and frequency relationship: T=2π/ω and f=1/T

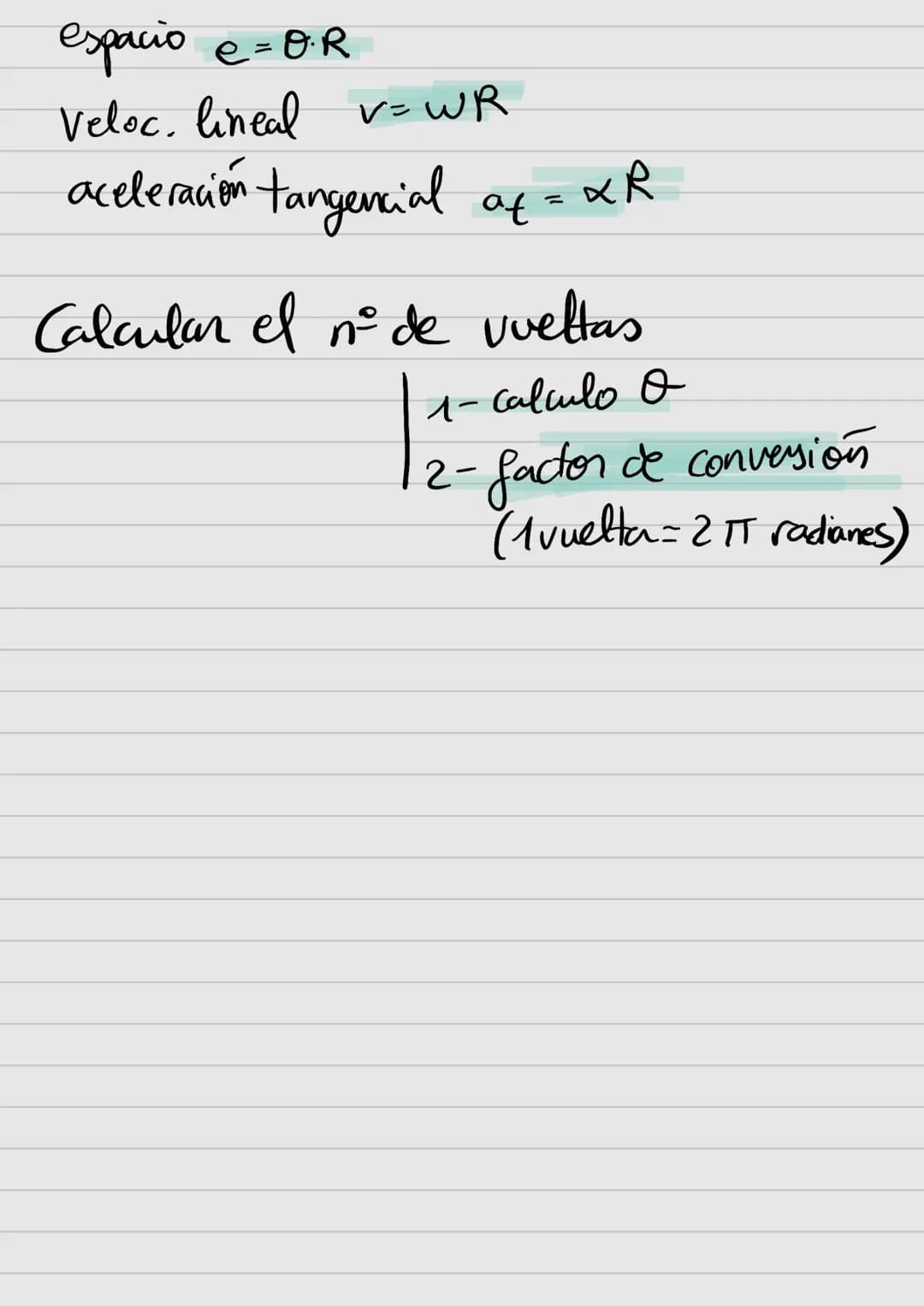

Linear and Angular Relationships

Covers the relationships between linear and angular quantities in circular motion.

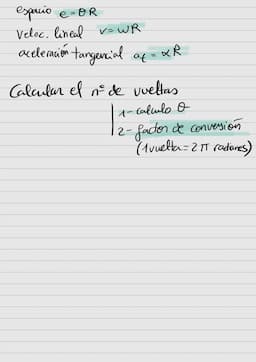

Definition: Linear quantities can be derived from angular ones using the radius:

• Arc length: s = θ·R
• Linear velocity: v = ω·R
• Tangential acceleration: at = α·R

Example: To calculate number of revolutions:

1. Calculate total angular displacement
2. Convert using 2π radians = 1 revolution

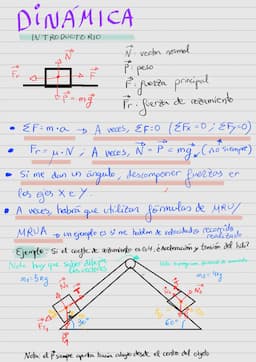

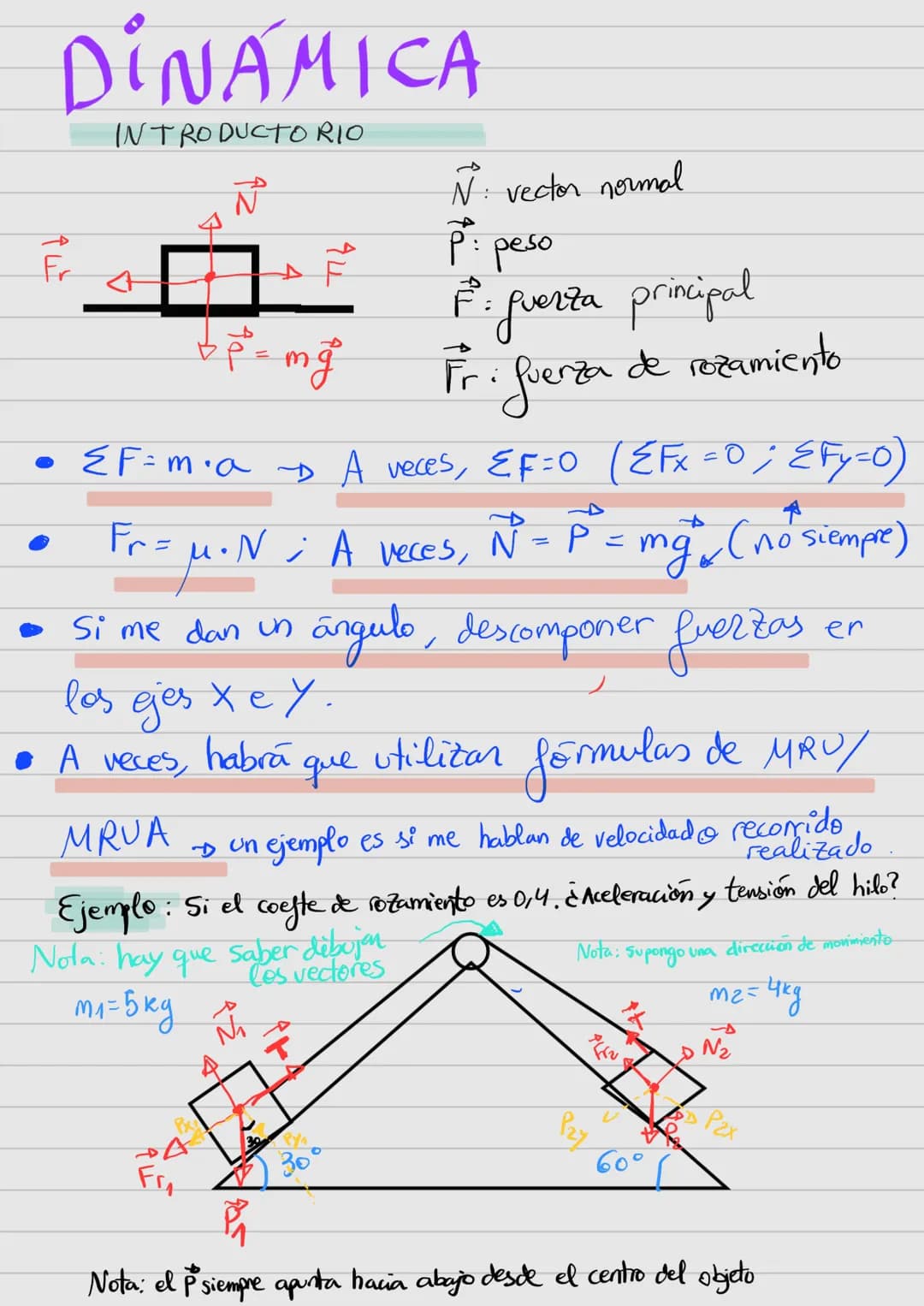

Introduction to Dynamics

Fundamental principles of dynamics and force analysis.

Definition: Net force equals mass times acceleration: ΣF=ma

Highlight: Important force considerations:

• Normal force (N) isn't always equal to weight (mg)
• Friction force Fr = μN
• Forces must be analyzed in x and y components

Example: Analysis of forces on inclined planes requires decomposition of weight into parallel and perpendicular components.

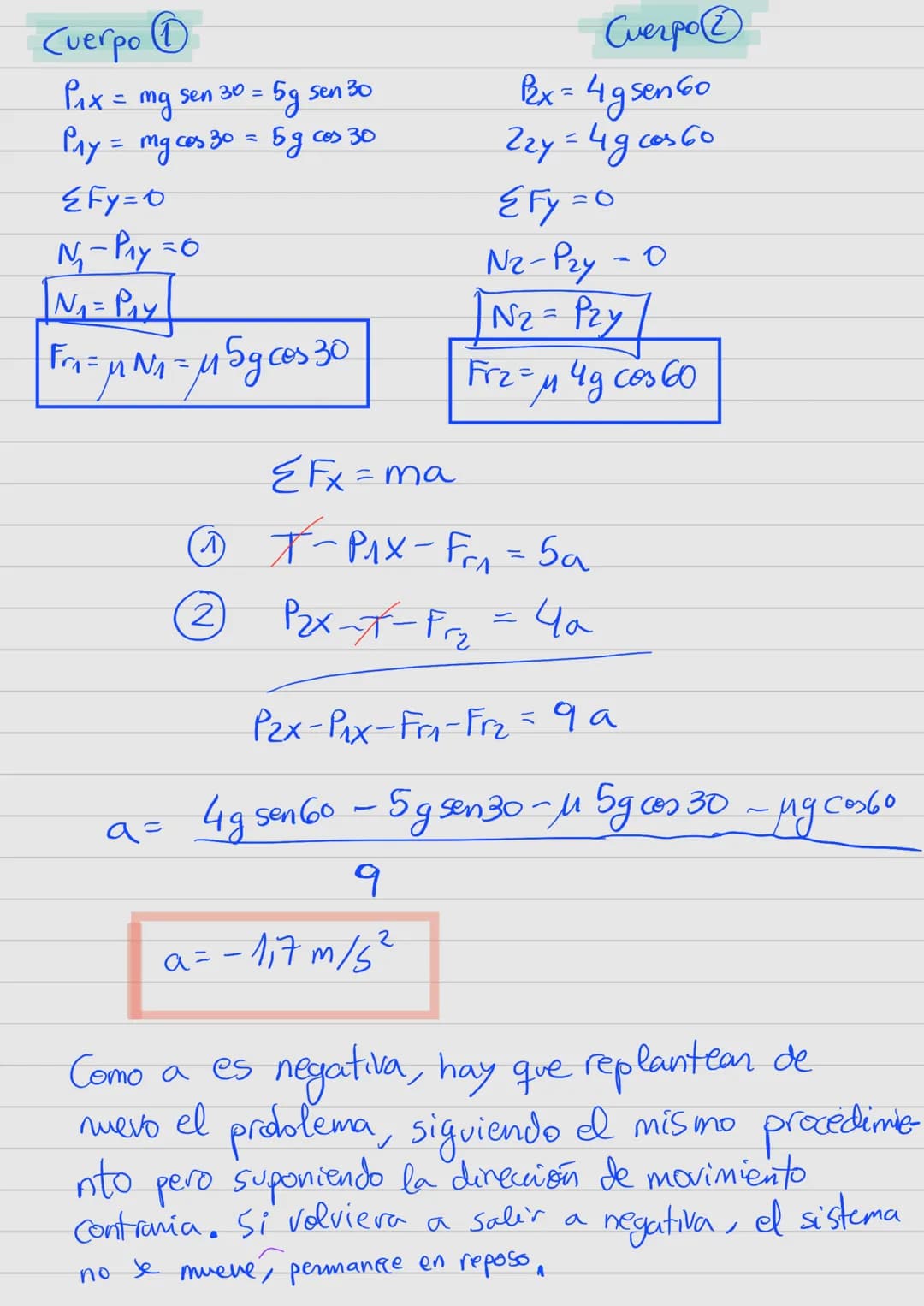

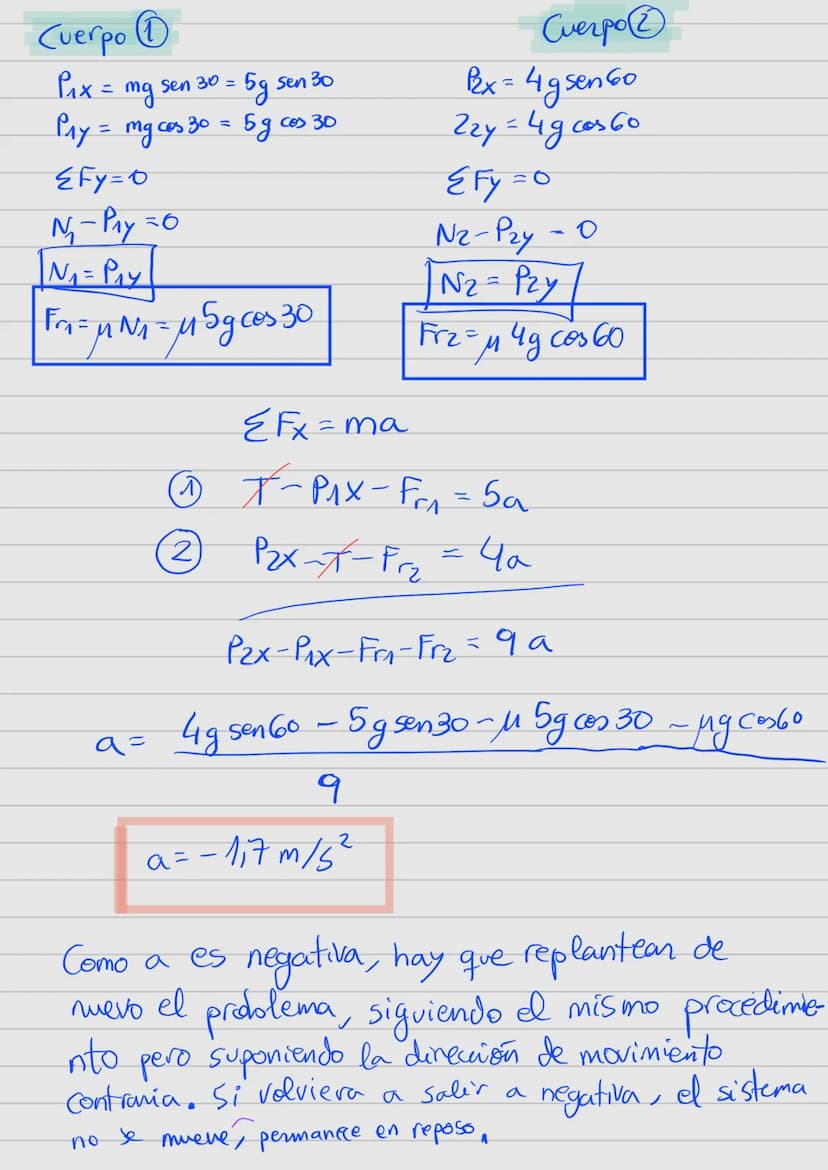

Force Analysis Examples

Detailed problem-solving methodology for dynamics problems.

Highlight: Problem-solving steps:

1. Draw force diagram
2. Decompose forces into components
3. Apply ΣF=ma in each direction
4. Solve resulting equations

Example: For a friction coefficient of 0.4, acceleration and tension calculations require systematic analysis of all forces.

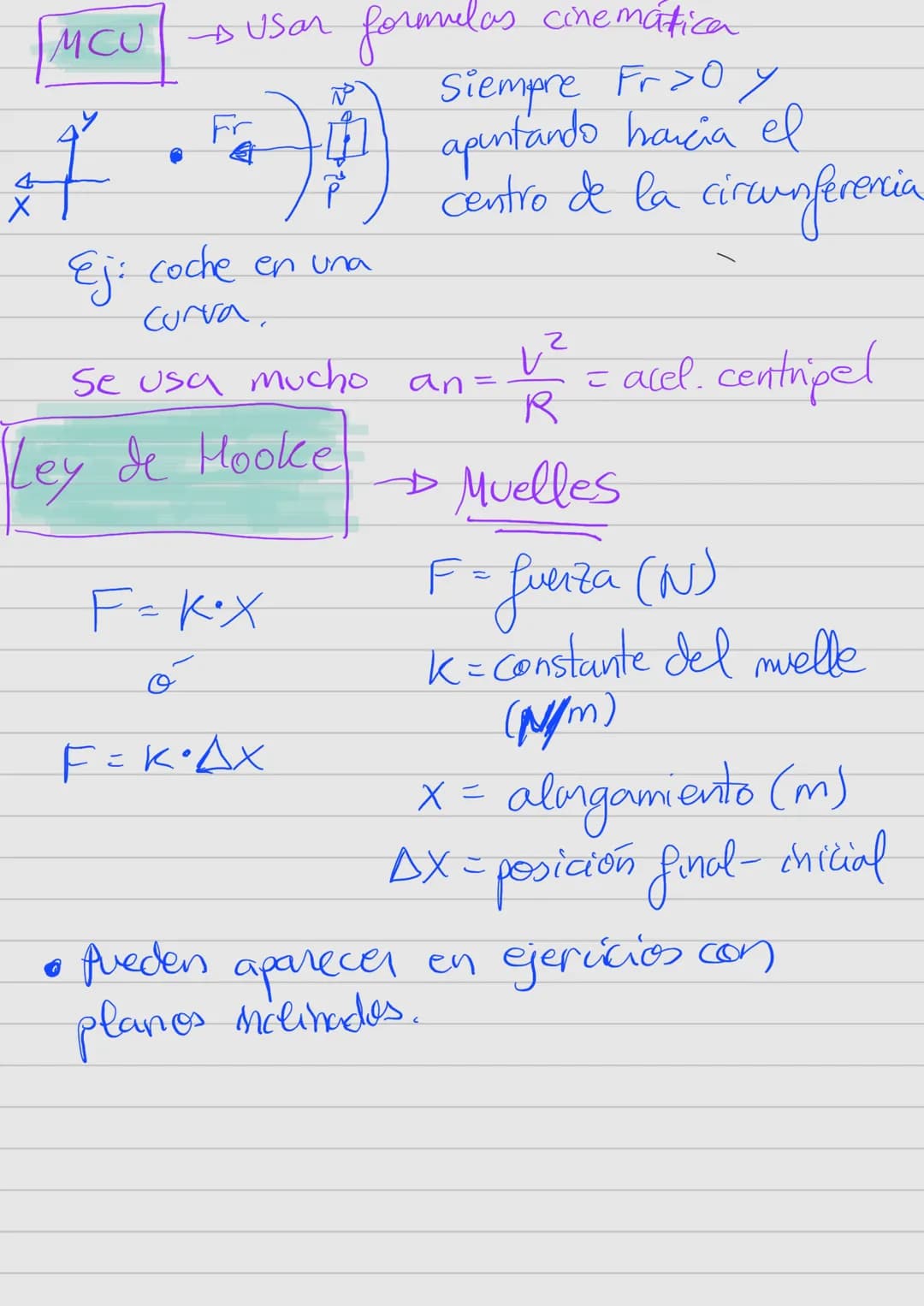

Special Applications

Applications of dynamics in circular motion and elastic systems.

Definition: Hooke's Law states F = kx, where:

• F is force in Newtons
• k is spring constant in N/m
• x is displacement in meters

Highlight: In circular motion, centripetal acceleration an = v²/R must be considered for objects moving in curves.

Example: A car turning on a curved road experiences centripetal force directed toward the center of the curve.

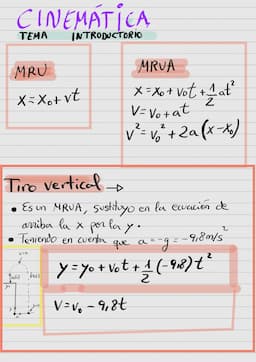

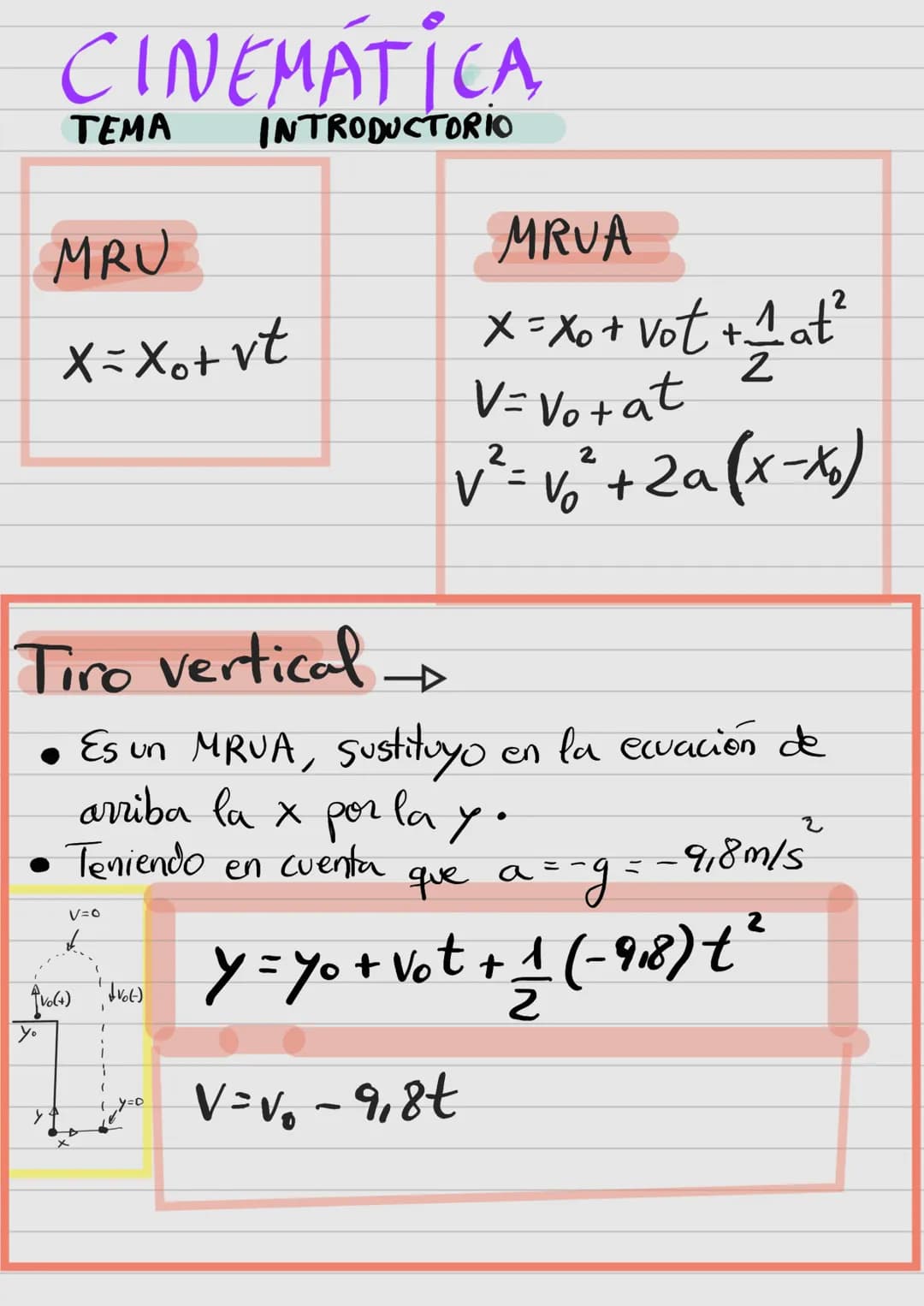

Introduction to Kinematics

This section introduces fundamental motion equations and their applications. The content covers uniform linear motion (MRU) and uniformly accelerated linear motion (MRUA).

Definition: MRU (Uniform Linear Motion) is described by the equation X=Xo+ vt, where position depends linearly on time.

Highlight: Vertical projectile motion is a special case of MRUA where acceleration equals gravity $-9.8 m/s²$.

Example: In vertical motion, velocity equations account for gravitational acceleration: V=Vo-9.8t

Vocabulary: MRUA (Uniformly Accelerated Linear Motion) uses equations:

• X = Xo + Vot + 1/2 at²
• V = Vo + at
• v² = vo² + 2a$x-xo$
