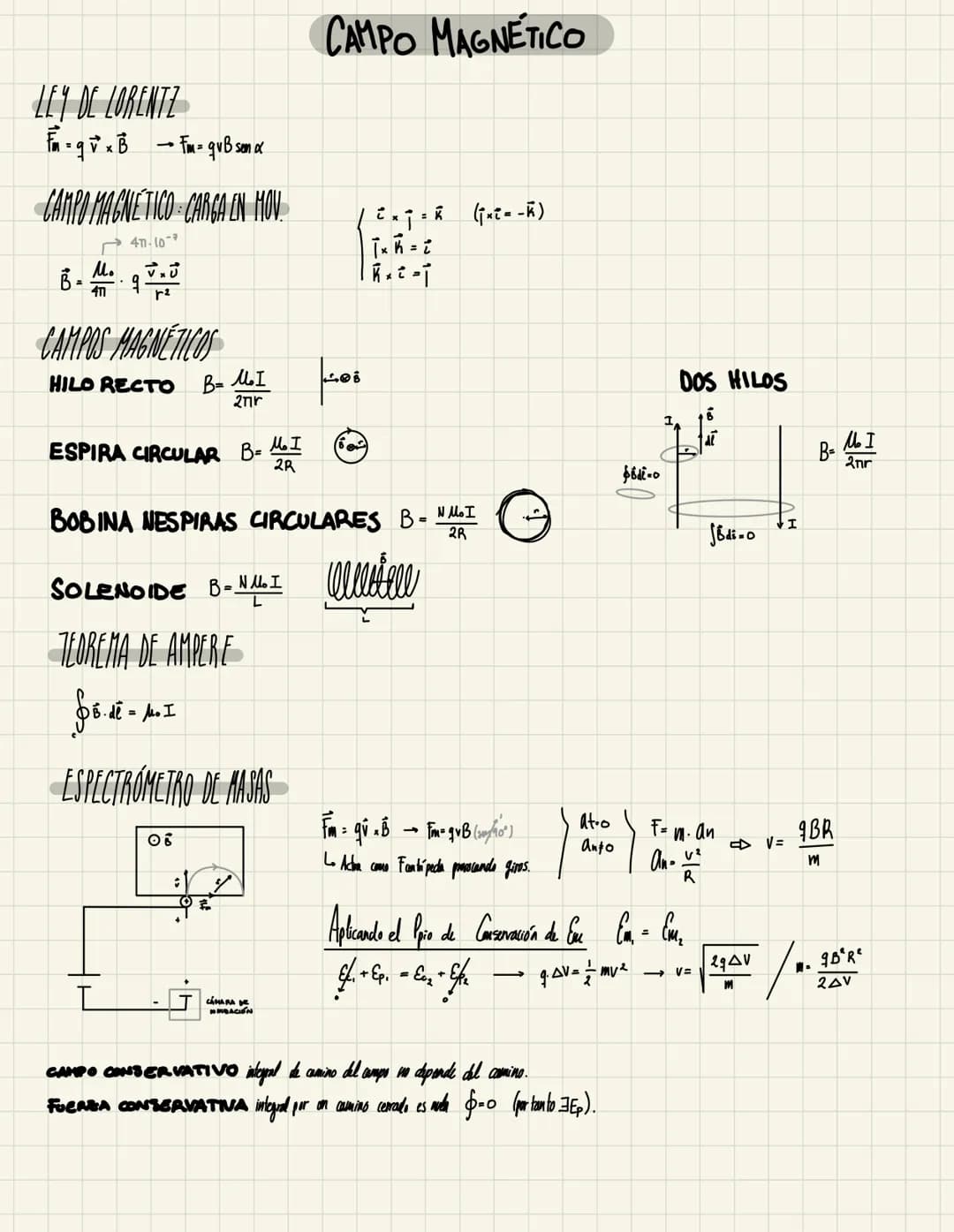

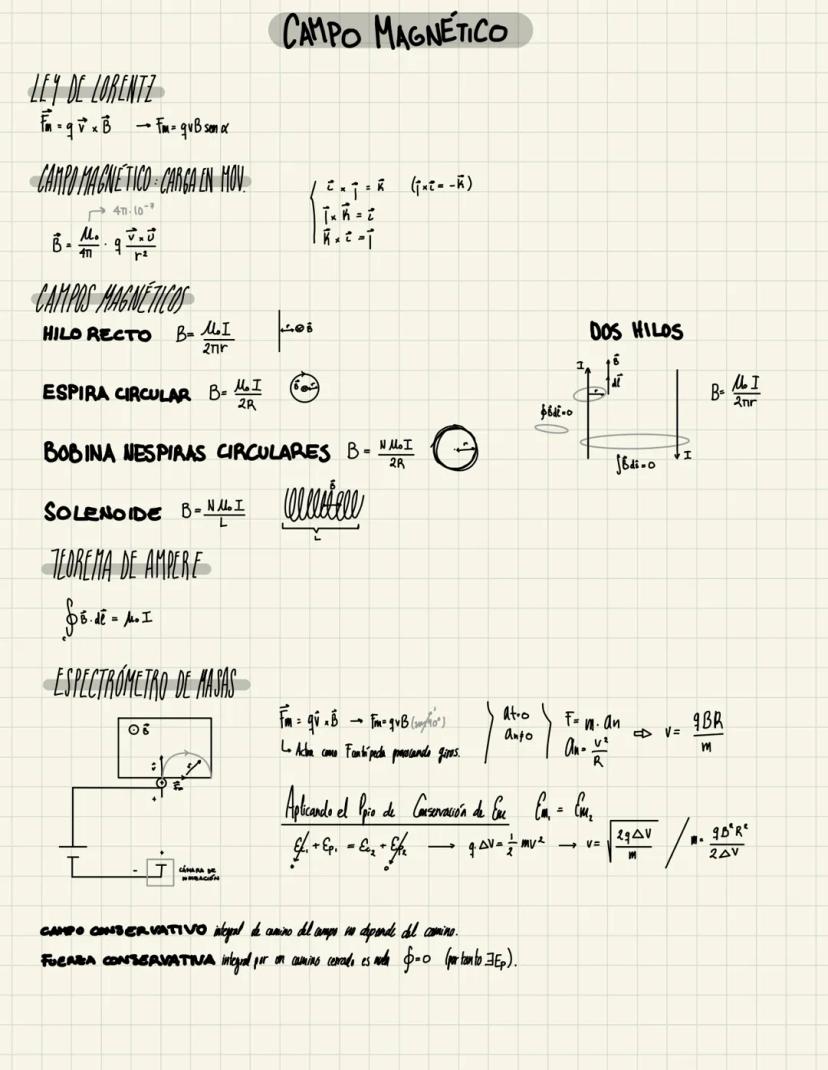

Magnetic Forces and Fields

The second page explores magnetic forces through Lorentz Force Law and magnetic fields created by various current-carrying conductors.

Definition: Lorentz Force $F = qv × B$ describes the force on a charged particle moving in a magnetic field.

Example: A straight current-carrying wire produces a circular magnetic field with strength B = μ₀I/(2πr).

Highlight: The magnetic field of a solenoid is uniform inside and depends on the number of turns per length.

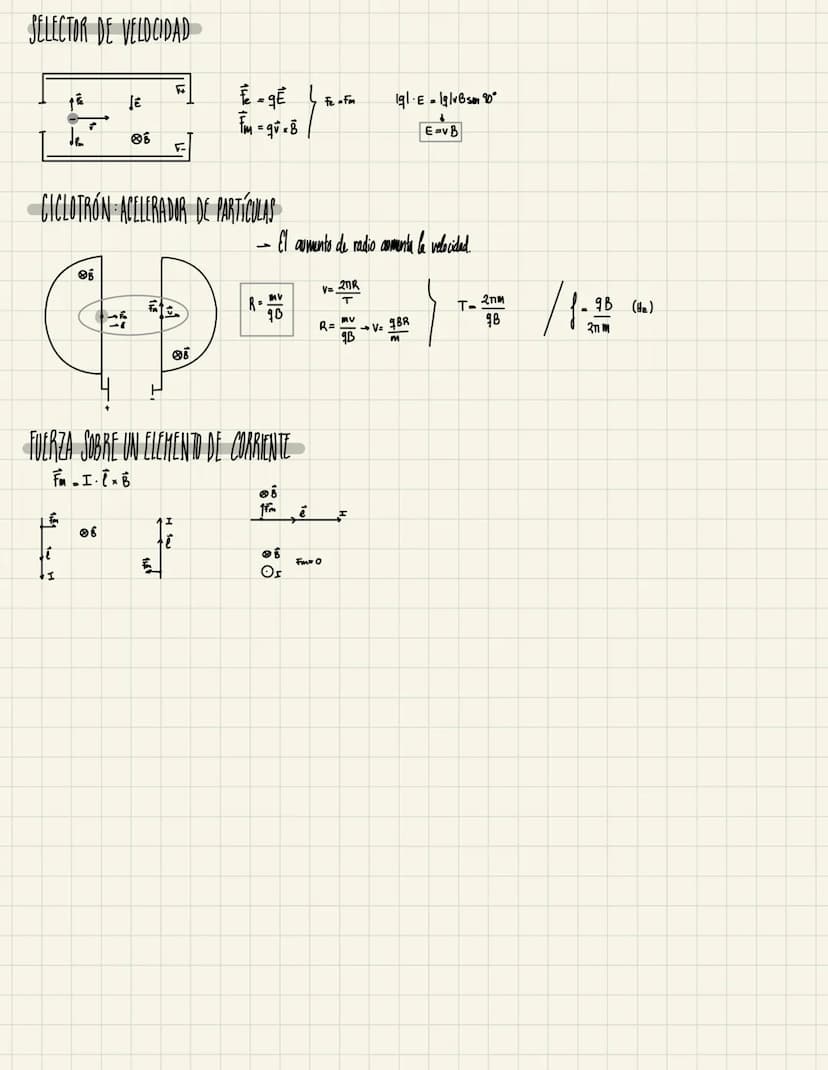

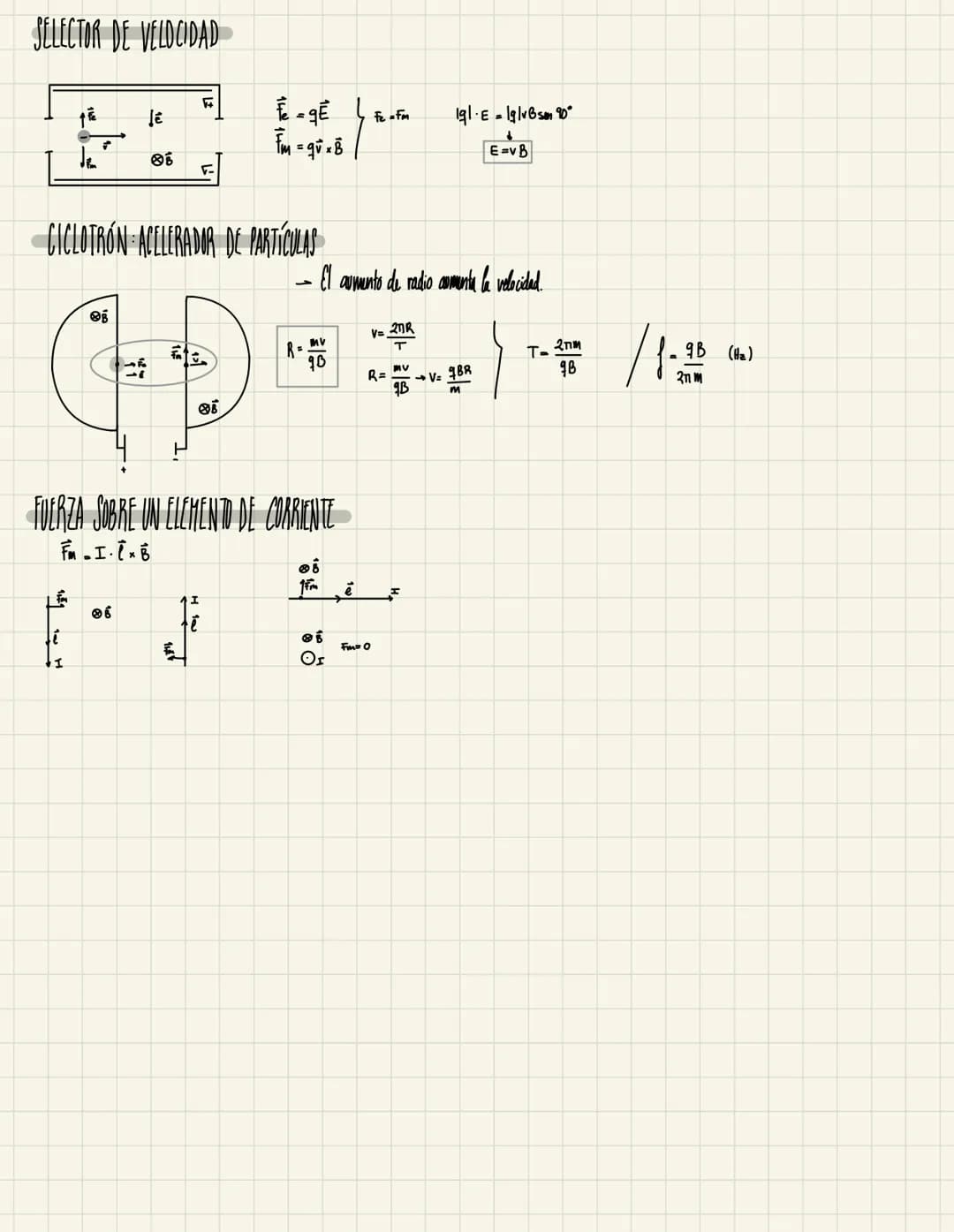

Particle Accelerators and Forces

This section covers applications of electromagnetic forces in particle accelerators and velocity selectors.

Definition: A velocity selector uses crossed electric and magnetic fields to select particles of specific velocity.

Example: In a cyclotron, particles follow a spiral path as they accelerate, with radius increasing with velocity.

Highlight: The force on a current element is given by Fm = I·l × B.

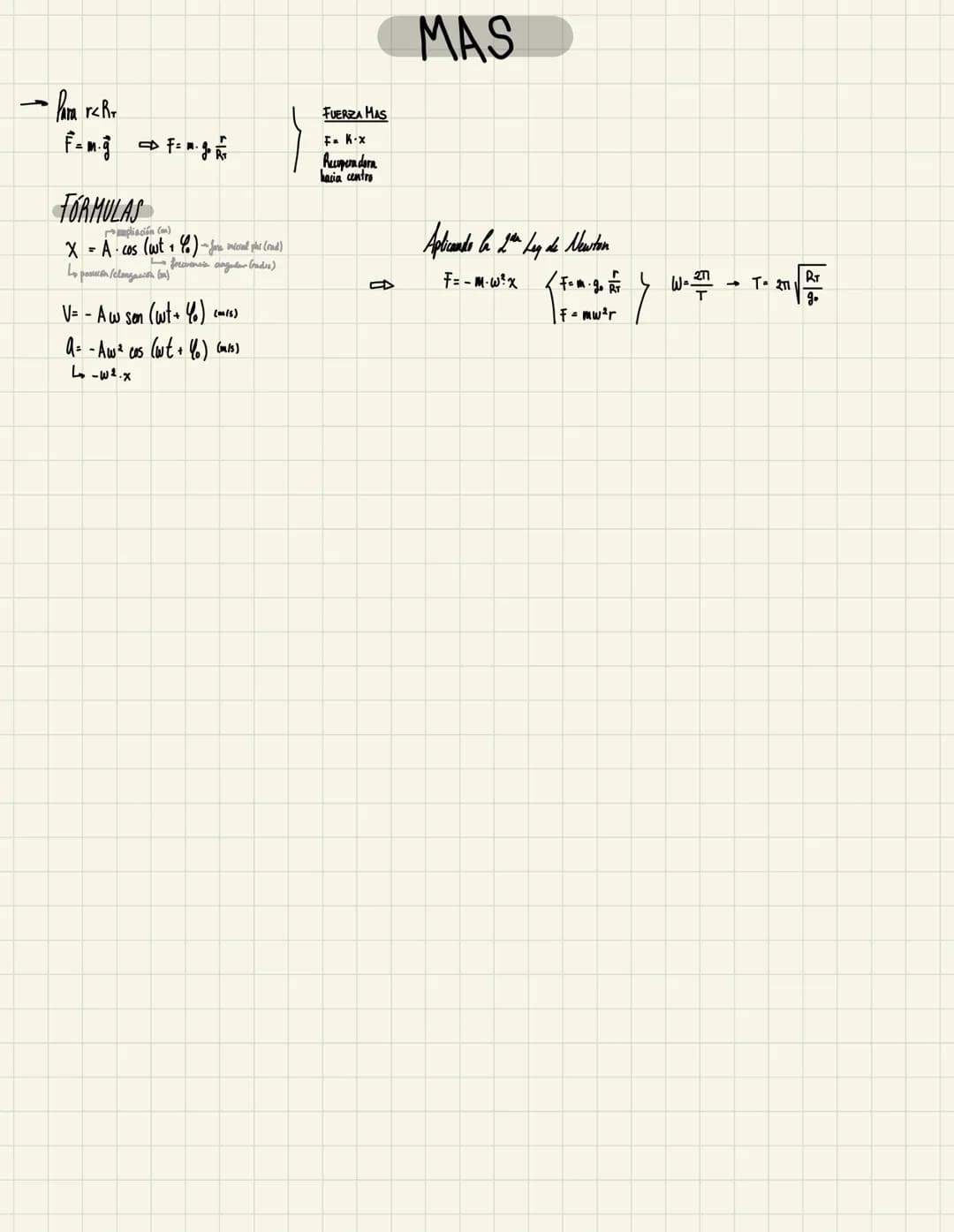

Simple Harmonic Motion

The fourth page transitions to mechanical oscillations and simple harmonic motion.

Definition: Simple harmonic motion occurs when restoring force is proportional to displacement.

Example: Position in SHM follows x = A·cos$ωt + φ$, where A is amplitude and ω is angular frequency.

Vocabulary: Angular frequency (ω) measures rotational frequency in radians per second.

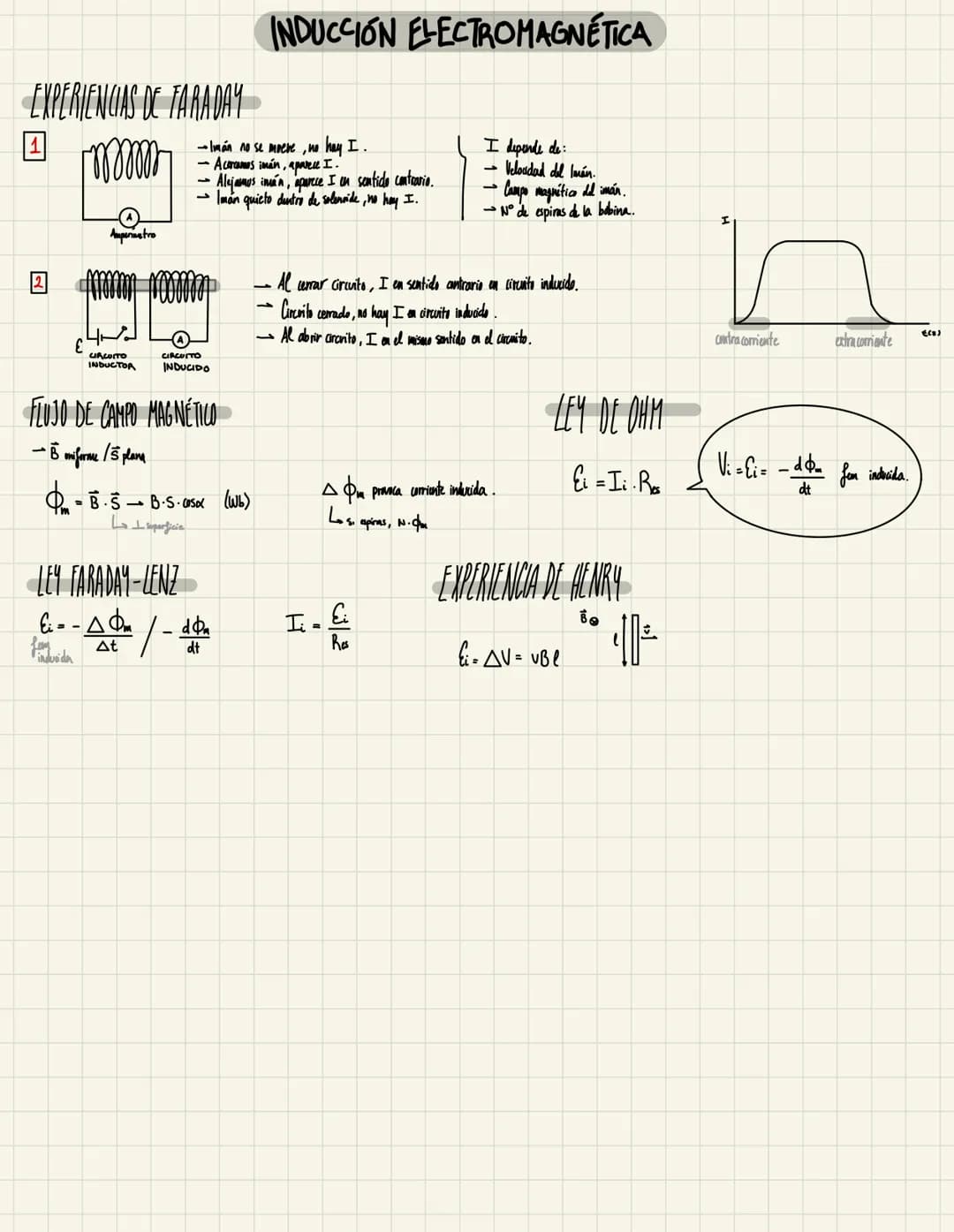

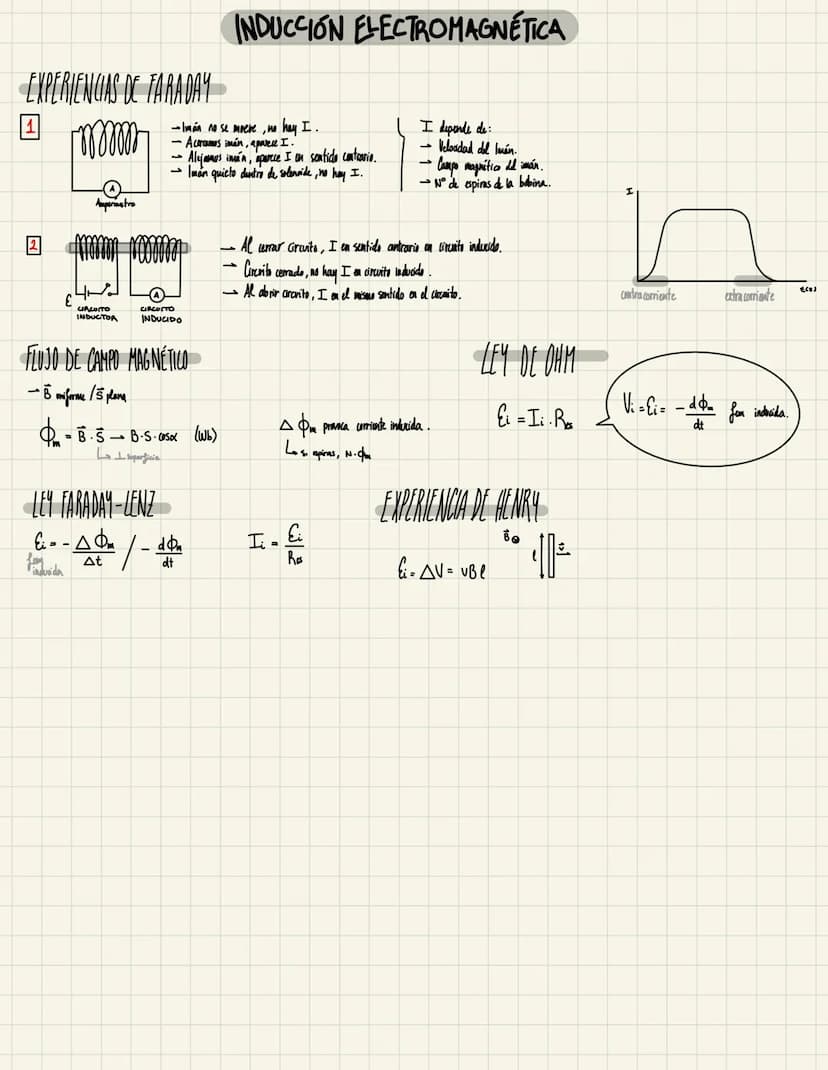

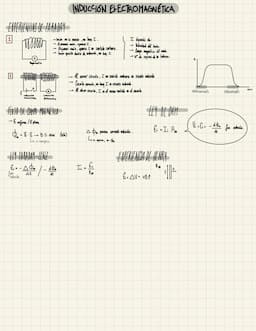

Electromagnetic Induction

The final page covers Faraday's experiments and electromagnetic induction principles.

Definition: Faraday's Law states that induced EMF equals the negative rate of change of magnetic flux.

Example: Moving a magnet through a coil induces current, with direction determined by Lenz's Law.

Highlight: Induced current depends on magnet velocity, magnetic field strength, and number of coil turns.

Quote: "The induced EMF opposes the change that created it" - Lenz's Law principle.

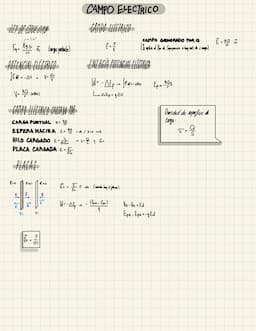

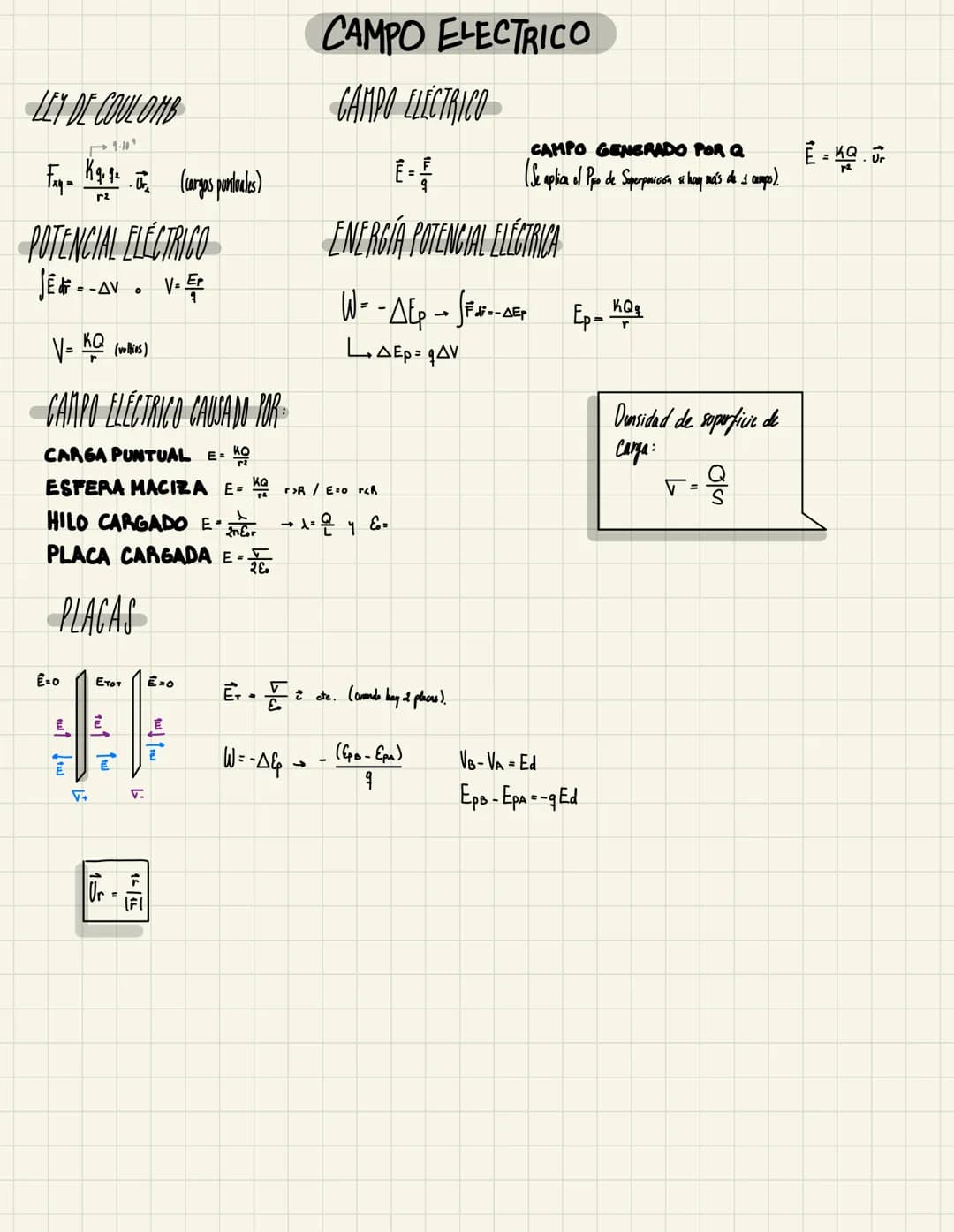

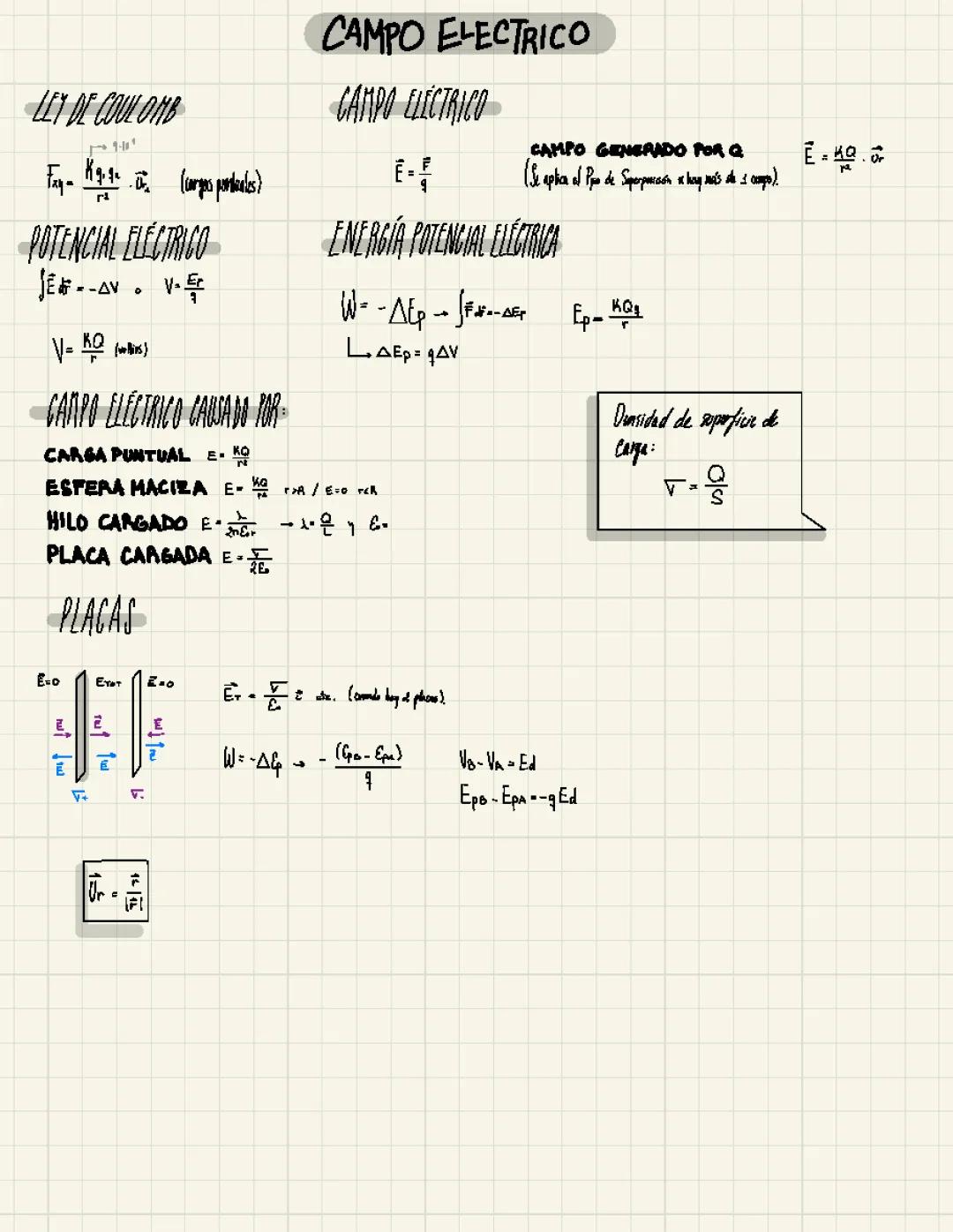

Electric Forces and Fields

This page introduces fundamental electromagnetic concepts starting with Coulomb's Law. The content covers electric forces, potential, and fields for various charge configurations.

Definition: Coulomb's Law describes the force between two point charges, proportional to their magnitudes and inversely proportional to the square of their distance.

Example: For a charged sphere, the electric field E = KQ/r² outside the sphere (r>R), while E = 0 inside.

Highlight: Electric potential difference between points relates to work done per unit charge: ΔV = Ed.

Vocabulary: Electric potential energy (Ep) represents stored energy in an electric field, measured in joules.
