The campo magnético (magnetic field) is a fundamental concept in physics, describing the force exerted on moving charged particles. This summary explores key formulas, examples, and applications of magnetic fields in various contexts.

Campo magnético fórmula y ejemplos:

A single charge q creates a magnetic field B at distance r: B = (μ₀qv × r̂) / (4πr²)
For an infinite wire: B = (μ₀I) / (2πr)
For a circular loop: B = (μ₀I) / (2R)
For a solenoid: B = (μ₀NI) / l

Key concepts include the Biot-Savart Law, Lorentz Force, and electromagnetic induction. The document covers applications such as cyclotrons, parallel conductors, and alternating current generation.

25/2/2023

739

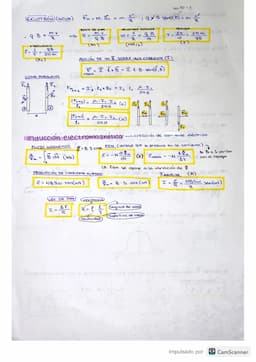

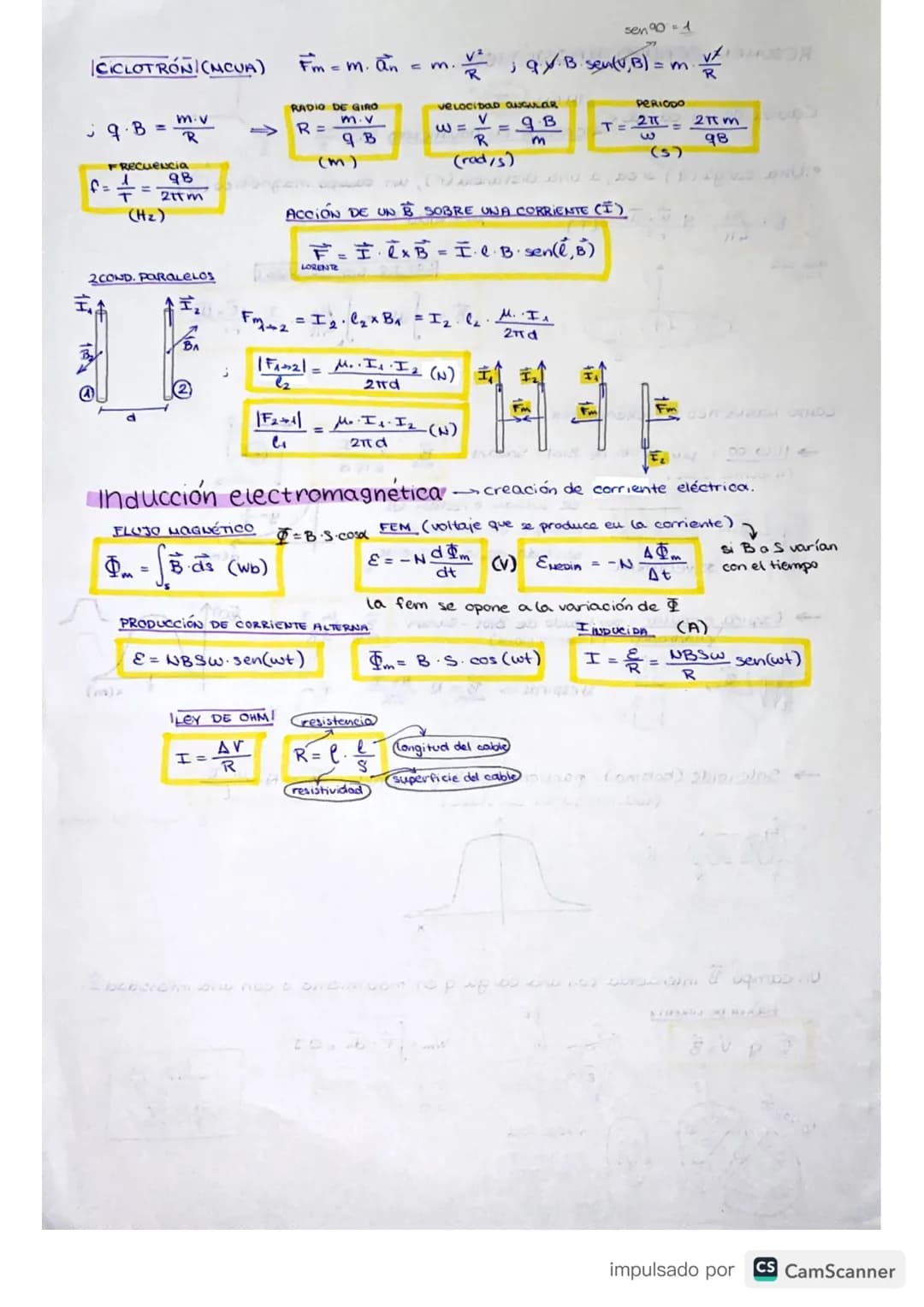

Magnetic Field Applications

This page delves into specific applications and phenomena related to magnetic fields.

The cyclotron, a type of particle accelerator, is discussed in detail:

Example: In a cyclotron, charged particles move in circular paths due to the Lorentz force. The frequency of rotation is given by f = (qB) / (2πm).

The page also covers the interaction between parallel conductors carrying currents:

Formula: The force per unit length between two parallel conductors is given by |F₁₂| = (μ₀I₁I₂) / (2πd).

Electromagnetic induction, a crucial concept in electromagnetism, is introduced:

Definition: Electromagnetic induction is the production of an electromotive force (EMF) across an electrical conductor in a changing magnetic field.

The formula for induced EMF in alternating current generation is presented:

Formula: ε = NBSω sin(ωt)

where N is the number of turns, B is the magnetic field strength, S is the area, and ω is the angular frequency.

The page concludes with discussions on magnetic flux and Ohm's law in the context of magnetic fields.

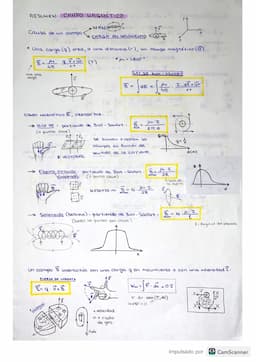

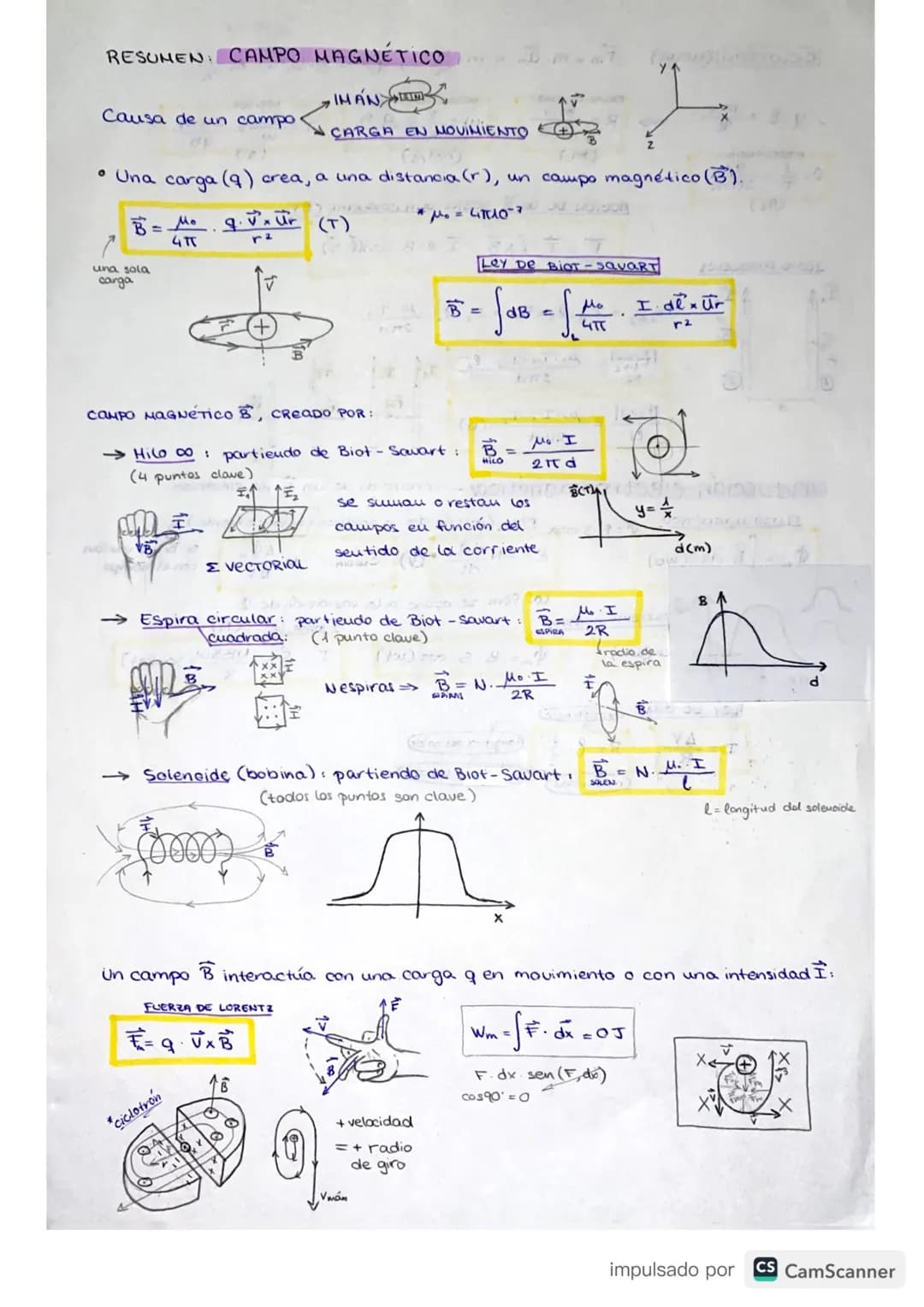

RESUMEN: CAMPO MAGNÉTICO
Causa de un campo
• Una carga (9) crea, a una distancia (r), un campo magnético (B).
JS MOTOR
*μ. = 4₁107
una sola

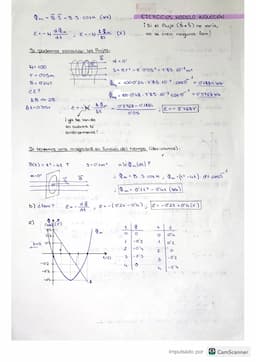

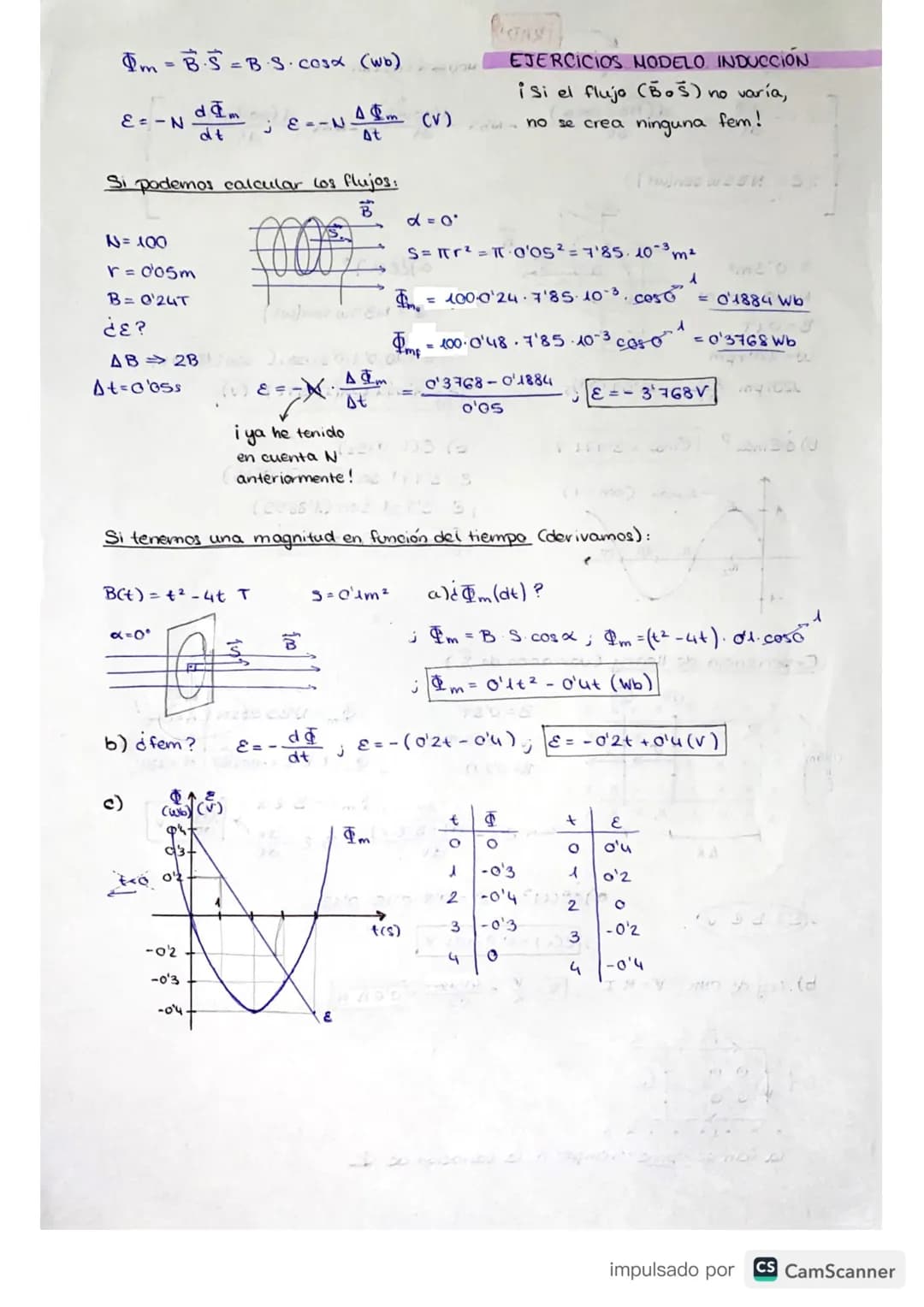

Electromagnetic Induction Exercises

This page focuses on practical exercises and examples related to electromagnetic induction.

The first exercise demonstrates how to calculate the rate of change of magnetic flux and the induced EMF:

Example: Given a circular coil with 100 turns and a radius of 0.05m in a magnetic field of 0.24T, the magnetic flux is calculated as Φ = BS cos α. The change in flux over time leads to an induced EMF of 3.768 V.

The page emphasizes that a changing magnetic flux is necessary to induce an EMF:

Highlight: If the magnetic flux (BS) does not change, no EMF is induced.

A graphical representation shows the relationship between time and induced EMF, illustrating how the EMF varies sinusoidally in certain scenarios.

The exercises also cover cases where the magnetic field changes as a function of time, requiring the use of calculus to determine the induced EMF:

Formula: ε = -N(dΦ/dt) = -N(d/dt)(BS cos α)

These examples help students understand the practical applications of electromagnetic induction formulas and concepts.

Ver

Magnetic Field Overview

This page introduces the fundamental concepts of magnetic fields, their causes, and key formulas.

The campo magnético (magnetic field) is created by moving charges or currents. The page presents formulas for calculating magnetic fields in various scenarios:

Definition: The magnetic field B created by a single charge q moving with velocity v at a distance r is given by the formula B = (μ₀qv × r̂) / (4πr²).

For different configurations, the following formulas are provided:

Infinite wire: B = (μ₀I) / (2πr)
Circular loop: B = (μ₀I) / (2R)
Square loop: Fields are summed or subtracted based on current direction
Solenoid: B = (μ₀NI) / l

Highlight: The Biot-Savart Law is a fundamental principle for calculating magnetic fields created by current-carrying conductors.

The page also introduces the Lorentz Force, which describes the interaction between a magnetic field and a moving charge or current:

Formula: F = qv × B

This force is responsible for the circular motion of charged particles in magnetic fields, a principle used in devices like cyclotrons.

Ver

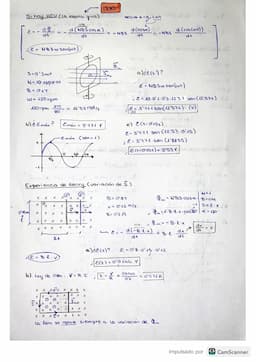

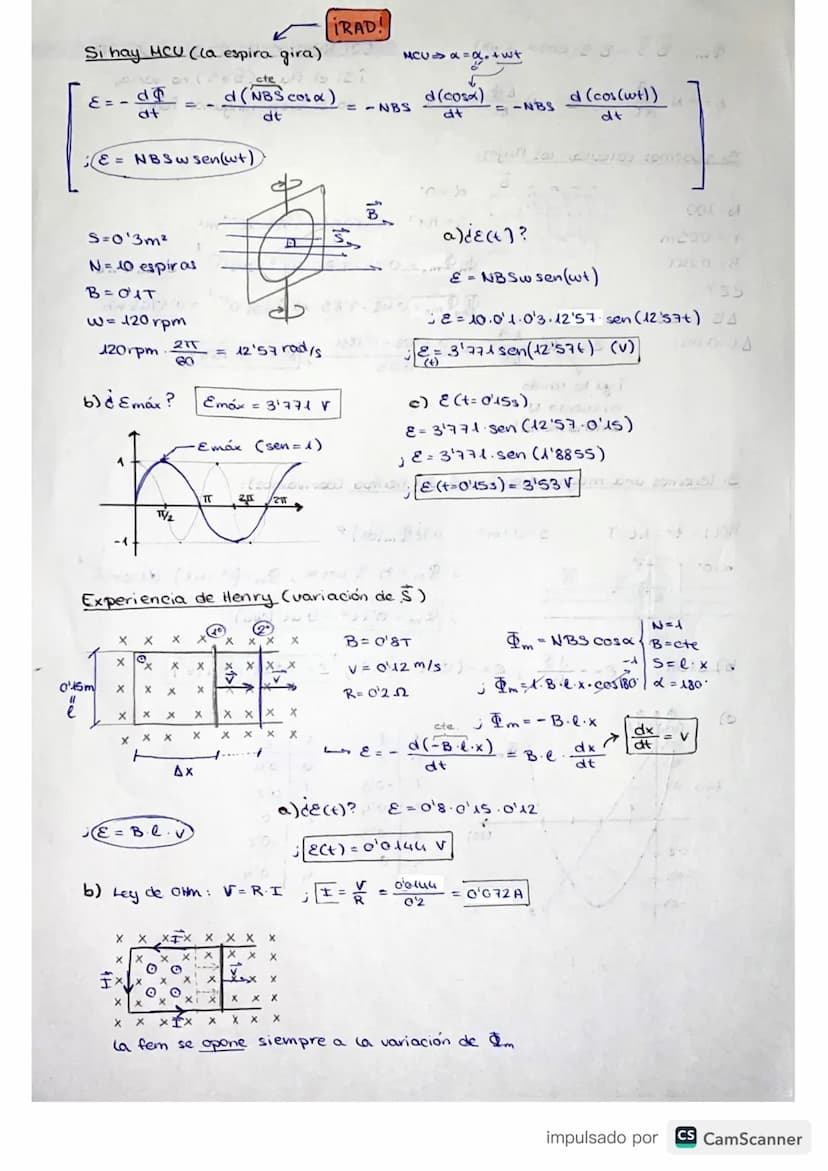

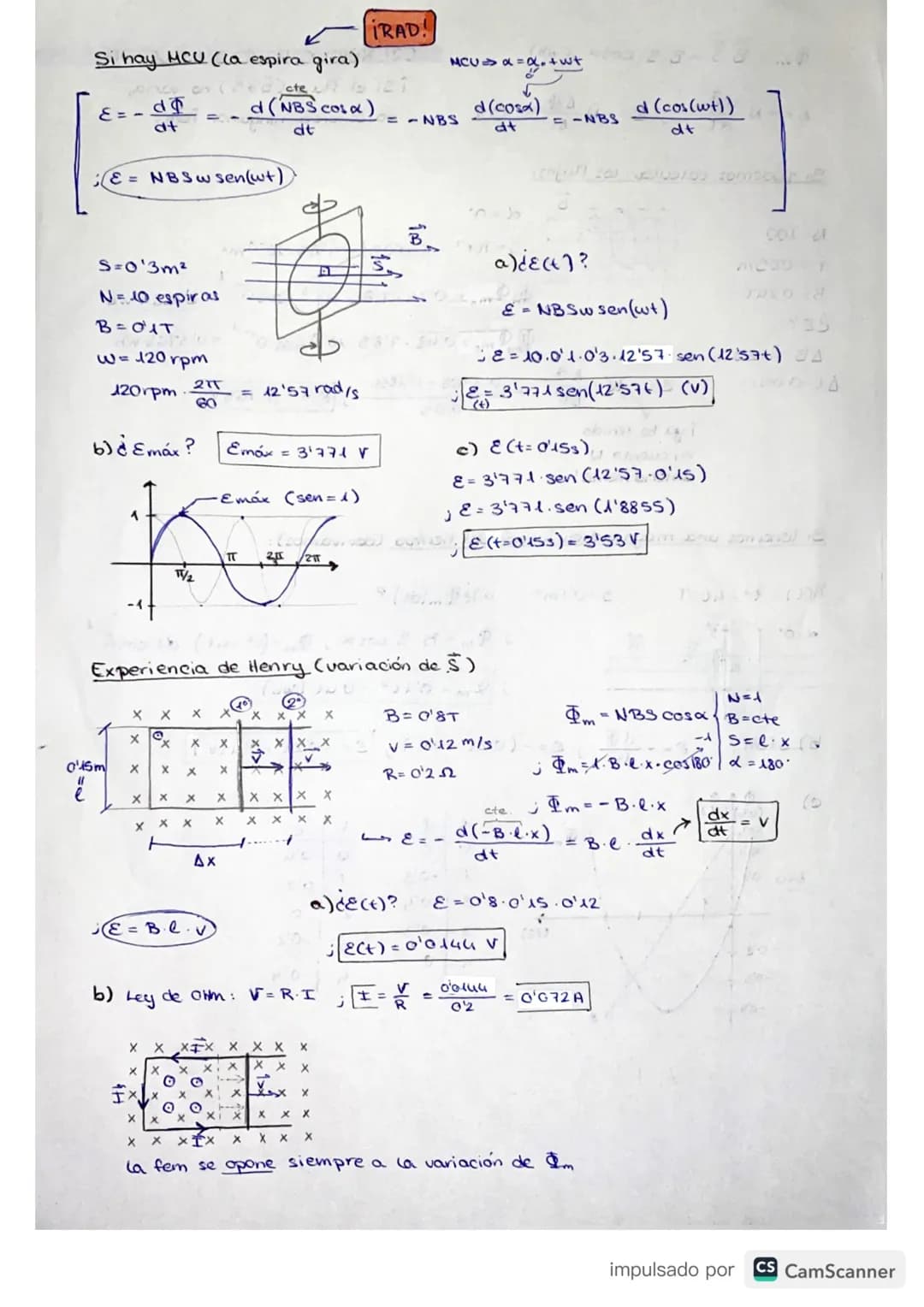

Advanced Electromagnetic Induction
